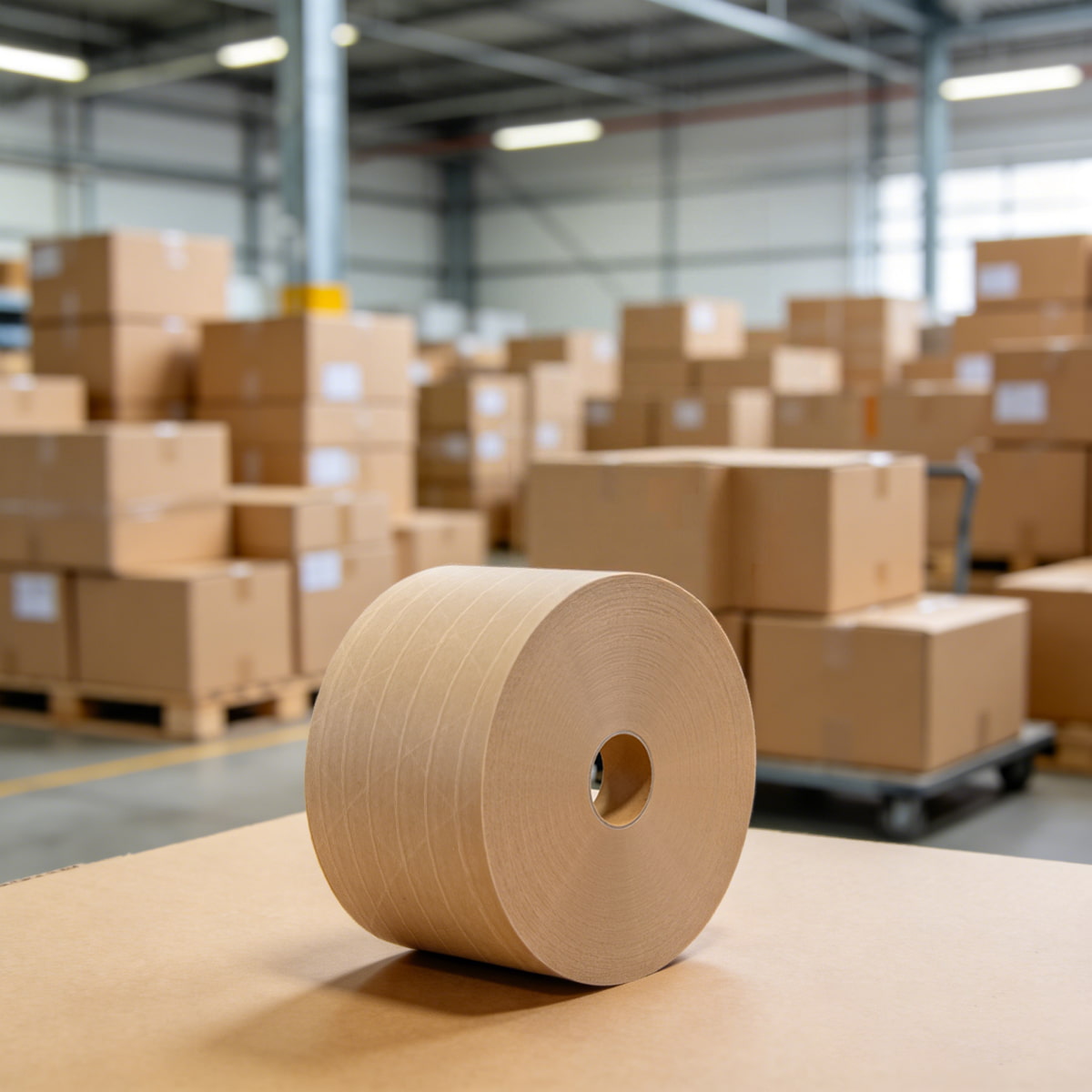

A pallet stacked four levels high with thirty kilogram boxes does not care about marketing claims. It responds to tensile strength, adhesive penetration, and reinforcement density. The JLN-37120 sits at the top of our reinforced water activated tape range, engineered specifically for heavy duty packaging where box failure translates directly into damaged goods and freight claims.
The construction starts with a one hundred seventy six grams per square meter kraft paper backing. This weight provides puncture resistance and dimensional stability during automated dispensing. The adhesive system applies forty grams per square meter on the top side and seventy grams per square meter on the bottom side. When water activates the starch based formula, the higher bottom coating ensures rapid fiber penetration into the corrugated substrate. This creates a fiber tear bond that becomes structurally integrated with the carton rather than sitting on the surface.
Reinforcement defines the heavy duty classification. Six longitudinal fiberglass yarns spaced at seventy six millimeter intervals run through the machine direction, supplemented by four cross direction yarns laid at a forty five degree angle. This grid pattern distributes impact stress across the tape width instead of concentrating it at the flap edges. Tensile strength in this configuration resists splitting when boxes shift during transit or when strapping compresses loaded pallets. The tape maintains integrity under stacking pressures that would cause standard paper tape to delaminate.
Application scenarios follow the physical demands of the load. We specify JLN-37120 for export cartons, industrial component shipping, and heavy retail distribution where boxes exceed forty five kilograms. The fiber tear characteristic provides tamper evidence for high value electronics and pharmaceutical batches. Facilities handling automotive parts, machinery components, or bulk consumer goods use this grade when pallets travel through multi modal logistics networks involving rail, ocean, and long haul trucking. The starch adhesive and kraft backing remain fully recyclable with the corrugated material, which simplifies waste processing for distribution centers managing thousands of units daily.
Temperature and humidity variations during transit test adhesive performance. Starch based systems cure through moisture evaporation, forming a rigid bond that withstands temperature swings between minus five and seventy degrees Celsius. This range covers most warehouse storage and continental shipping conditions. For facilities operating in tropical climates or unconditioned freight containers, the heavy backing weight prevents moisture absorption from weakening the tape structure before activation.
The standard seventy millimeter and seventy two millimeter widths align with common case sealer specifications. These dimensions provide sufficient flap overlap for regular slotted containers while maintaining material efficiency during high volume runs. Operators using KN-366Hi series dispensers or KN-355 automated case sealers benefit from consistent thickness tolerances that prevent jamming in heavy duty feed mechanisms. The tape cuts cleanly despite the dense fiberglass grid, reducing blade wear on dispensing equipment.
Aviation cargo represents one specialized requirement within the broader industrial application range. The tamper evident fiber tear bond and heavy reinforcement meet stringent security and load securing standards for air freight, though the same construction serves equally well for bridge construction material bundling, steel coil protection, or transformer shipping where impact resistance matters more than speed.
Selecting heavy duty tape requires matching specification to actual transit conditions rather than defaulting to maximum grade for every box. JLN-37120 addresses the intersection of weight, distance, and handling severity. When your operation moves beyond standard e-commerce fulfillment into industrial distribution or export logistics, this construction provides the seal reliability that prevents seam failure before the load reaches its destination.
